Technical Specs
Overview
Colour
Black
Dimensions
Without mount: Ø107.2 x 104.5 x 203.2 mm (Ø4.2 x 4.1 x 8")
With mount: Ø107.2 x 111 x 230.2 mm (Ø4.2 x 4.8 x 9.1")
IR Night Vision
30 m (98 ft)
Zoom Mode
10x Hybrid
*Combination of 5x optical and 2x digital
Face Recognition
Yes
License Plate Recognition
Yes
Smart Detections (People, Vehicles, Animals)
Yes
Resolution
4K
Field of View
Wide: H: 109.9°, V: 56.7°, D: 134.1°
Tele: H: 26.6°, V: 15.1°, D: 30.4°
Pan-Tilt Range
Pan: 350°
Tilt: 100°
Audio
Two-way audio
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall, Surface, Ceiling, Pole mount (Included)
Corner, In-Ceiling, Pendant mount, Conduit adapter (Sold separately)
UniFi Application Suite
Protect
Performance

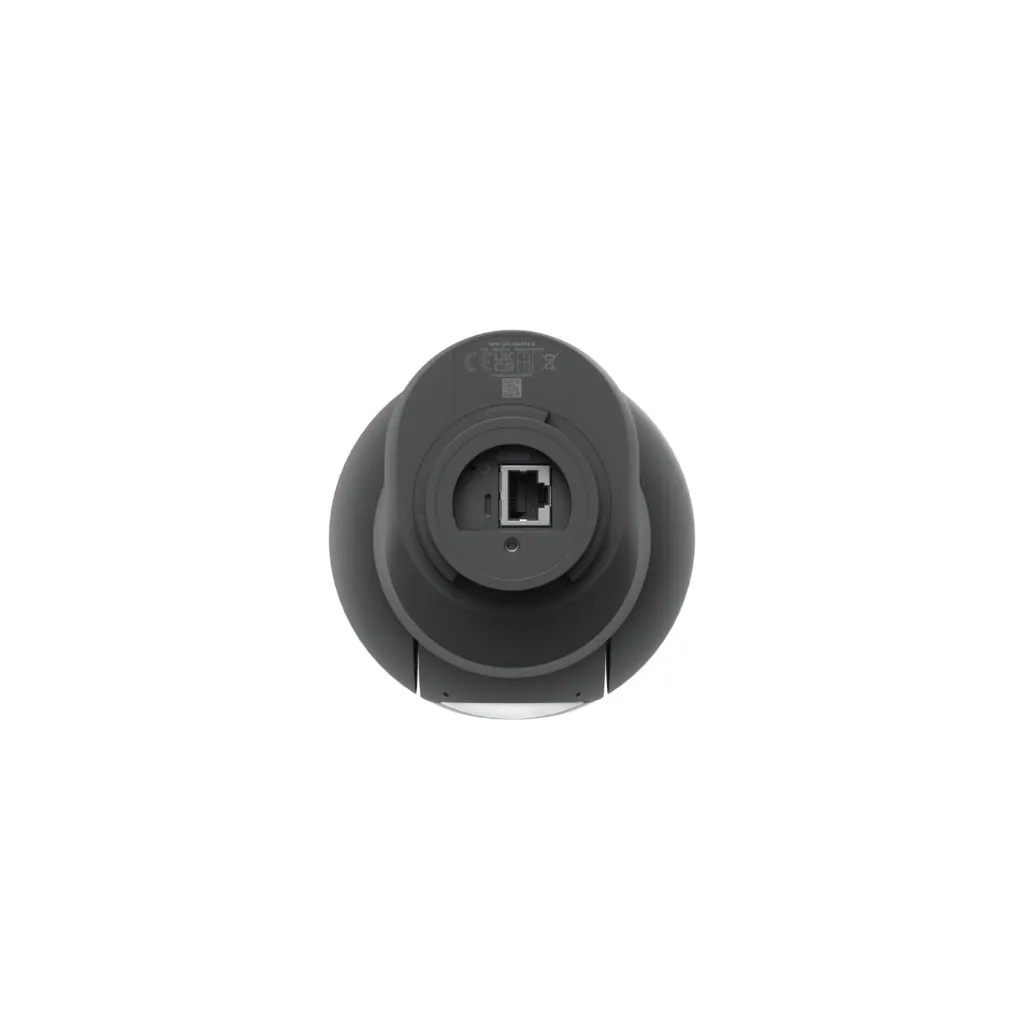

Networking Interface
10/100 MbE RJ45 port
Video
Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 30 FPS
Resolution: 8MP 3840 x 2160 (16:9)
Optics
Sensor: Wide: 1/1.8" 8MP; Tele: 1/1.8" 8MP
Lens: Wide: F 4.46 mm; ƒ/1.65; Tele: F 16.3 mm; ƒ/2.4
Night Mode: Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption
24.5W
Supported Voltage Range
42.5—57V DC
Power Method
PoE+
Processor
Quad-core Arm® Cortex®-A53 based chip
Pole Mount Diameter
1.5–2" (38–50 mm)
Metal strap torque: 6Nm
Weight
Without arm mount: 1 kg (2.2 lb)
With arm mount: 1.1 kg (2.4 lb)
Enclosure Material
Aluminium alloy, polycarbonate
Mount Material
Arm mount: polycarbonate
Pole mount: aluminium alloy
Expansion Slot
MicroSD card
Button
(1) Factory-reset
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
20 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
