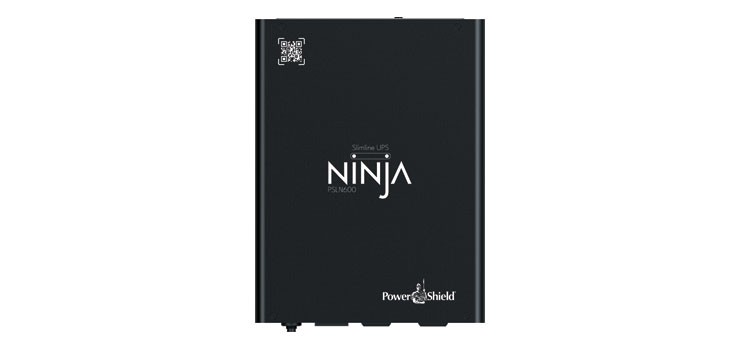

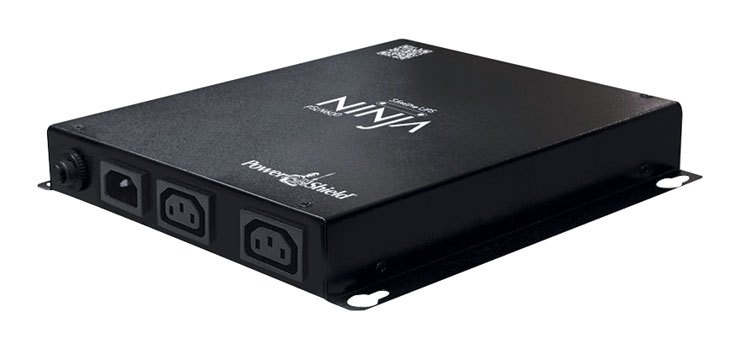

POWERSHIELD NINJA SLIMLINE UPS, 600VA LIFEPO4, 2YR
With its ultra-thin design the Ninja Slimline UPS is designed for environments where space is limited and perfect for use in protecting equipment such as electrical boards, irrigation and reticulation panels, switchboards, intelligent homes, lightboards, menu boards and anywhere else that requires a compact power solution.
| Capacity | 600VA / 360W |
| Topology | Stand by |
| Voltage | 220–240VAC |
| Voltage Range | 180–270VAC |
| Frequency Range | 50Hz (auto sensing) |
| Output Voltage | 240VAC ± 10% |
| Frequency Range (Batt Mode) | 50Hz |
| Transfer Time | 6ms (Typical) |
| Outlets – UPS & Surge Protection | 2 x IEC |
| Battery Type | 1 x Lithium Iron Phosphate (LiFePO4), 4S4P, 18650 cells, 4400mAh |
| Typical Recharge Time | 4–8 hours recover to 90% capacity |
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
| Surge Protection | 760Joules / 5000Amps |
| Interface – Standard Communications | RS-232 port provides communication & power for optional web card |
| Interface – Web/SNMP Card Option | PSECMB – External Web/SNMP card for UPS monitoring |
| Dimension L x W x H (mm) | 277 x 210 x 42mm (UPS only) |
| Net Weight (kgs) | 2.5 |
| Temperature | 0–50°C |
| Humidity | 0–90% RH (non-condensing) |
| Noise Level | Less than 40dB |
| Standard Warranty | 5-year electronic, 5-year battery warranty |
