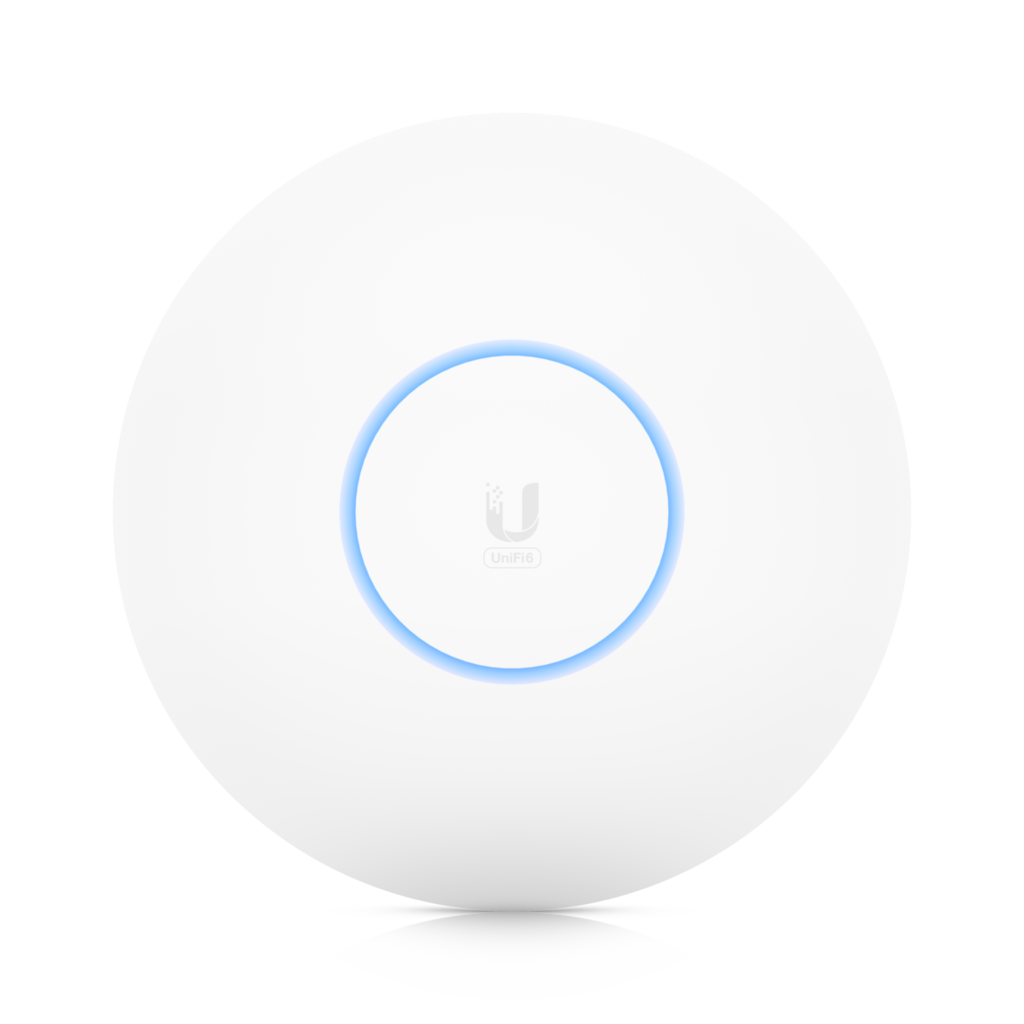

Ubiquiti UniFi Wi-Fi 6 Long-Range AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 600Mbps & 5GHz @ 2.4Gbps *No POE Injector*, Upgrade UAP-AC-LR

DESCRIPTION

Wi-Fi 6 Long-Range AP

With its Wi-Fi 6 capability, the U6-LR will strengthen your enterprise environment with the widest, most reliable coverage yet.

Wi-Fi 6

Better performance in crowded environments

4-Stream AP

Faster download and upload speeds

Full-duplex 1 Gbps

Support full-duplex 1 Gbps TCP/IP performance

Bluetooth 5.0

Fast discovery and setup

Best-in-class Wi-Fi coverage and performance

The Access Point WiFi 6 Long-range (U6 LR) is a high-performance access point that brings powerful, four-stream WiFi 6 coverage to enterprise networks. The U6 LR can reach an aggregate throughput rate up to 3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (4x4 MIMO) bands. It also has a sideways, down-tilted antenna pattern to expand its coverage area.

Four-stream high-efficiency Wi-Fi 6 technology

Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios

124% speed increase

Powerful, wider wireless coverage

The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.

2x coverage increase

Simultaneously connect to more devices

Create and support over 300 distinct client connections. The U6 LR simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Easily set up and grow your network

The U6-LR access point seamlessly integrates with the UniFi Network Application and simplifies network bridging.

UniFi Network Application

UniFi Network Application Host, configure, and monitor all of your network devices from a central mobile interface.

Availble on both iOS and Android

Flexible Mounting Options

The water and dust-resistant U6 LR can be mounted either indoors or outside, blending seamlessly into virtually any environment so you'll never have to disrupt your space's aesthetic to enjoy excellent wireless coverage.

Know more about your network than ever before

Easily accessible through any standard web browser and the UniFi app (iOS or Android™), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Device Identification

Traffic Identification

Threat Protection

Specifications

Mechanical

Dimensions

ø220 x 48 mm

Weight

Without Mount: 800 g

With Mount: 930 g

Enclosure Material

Plastic

Mount Material

SGCC Steel

Weatherproofing

IP54

Hardware

Management Interface

Ethernet

Bluetooth Low Energy 5.0

Networking Interface

(1) 1 Gbps Ethernet RJ45

Button

Factory Reset

LED*

White/Blue

*Due to chip supply shortages, the U6 LR's LED has been limited to only white and blue color modes.

Power Method

PoE+, Passive PoE (48V)

Power Supply

UniFi PoE Switch

48V, 0.5A PoE Adapter (Not Included)

Supported Voltage Range

44 to 57VDC

Max. Power Consumption

16.5W

Max. TX Power

2.4 GHz - 26 dBm

5 GHz - 26 dBm

MIMO

2.4 GHz - 4 x 4

5 GHz - 4 x 4

Throughput Speeds

2.4 GHz - 600 Mbps

5 GHz - 2400 Mbps

Antenna Gain

2.4 GHz - 4 dBi

5 GHz - 5.5 dBi

Mounting

Wall/Ceiling (included)

Operating Temperature

-30 to 60° C

Operating Humidity

5 - 95% Noncondensing

Certifications

CE, FCC, IC

Software

Wi-Fi Standards

802.11a/b/g

Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless Security

aWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per Radio

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Traffic Isolation

Supported

Concurrent Clients

300+

Supported Data Rates (Mbps)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4)

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (Wi-Fi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (Wi-Fi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Customers Also Bought

Ubiquiti UI Care, UICARE-U6-LR-D, For U6-LR, Five-Year Extended Replacement Protection, For NEW Sales Only

Quantity:

$46

  ex GST

Ubiquiti WiFiMan Wizard, Portable Spectrum Analyzer, Designed for WiFiMan iOS/Android Apps, 2.4 GHz and 5 GHz Unlicensed Band Scanning

Quantity:

$199

  ex GST

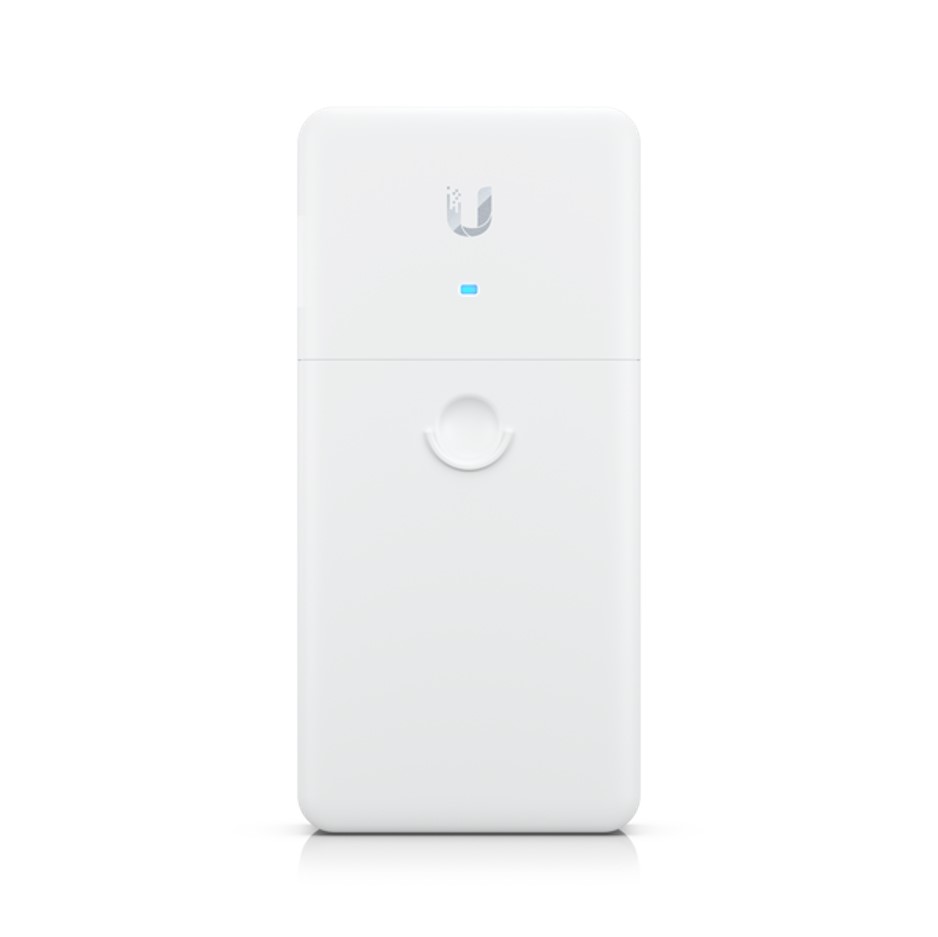

Ubiquiti UniFi Long-Range Ethernet Repeater, Receives PoE/PoE+, Offers Passthrough PoE Output, PoE Connections Up to 1 km

Quantity:

$57

  ex GST

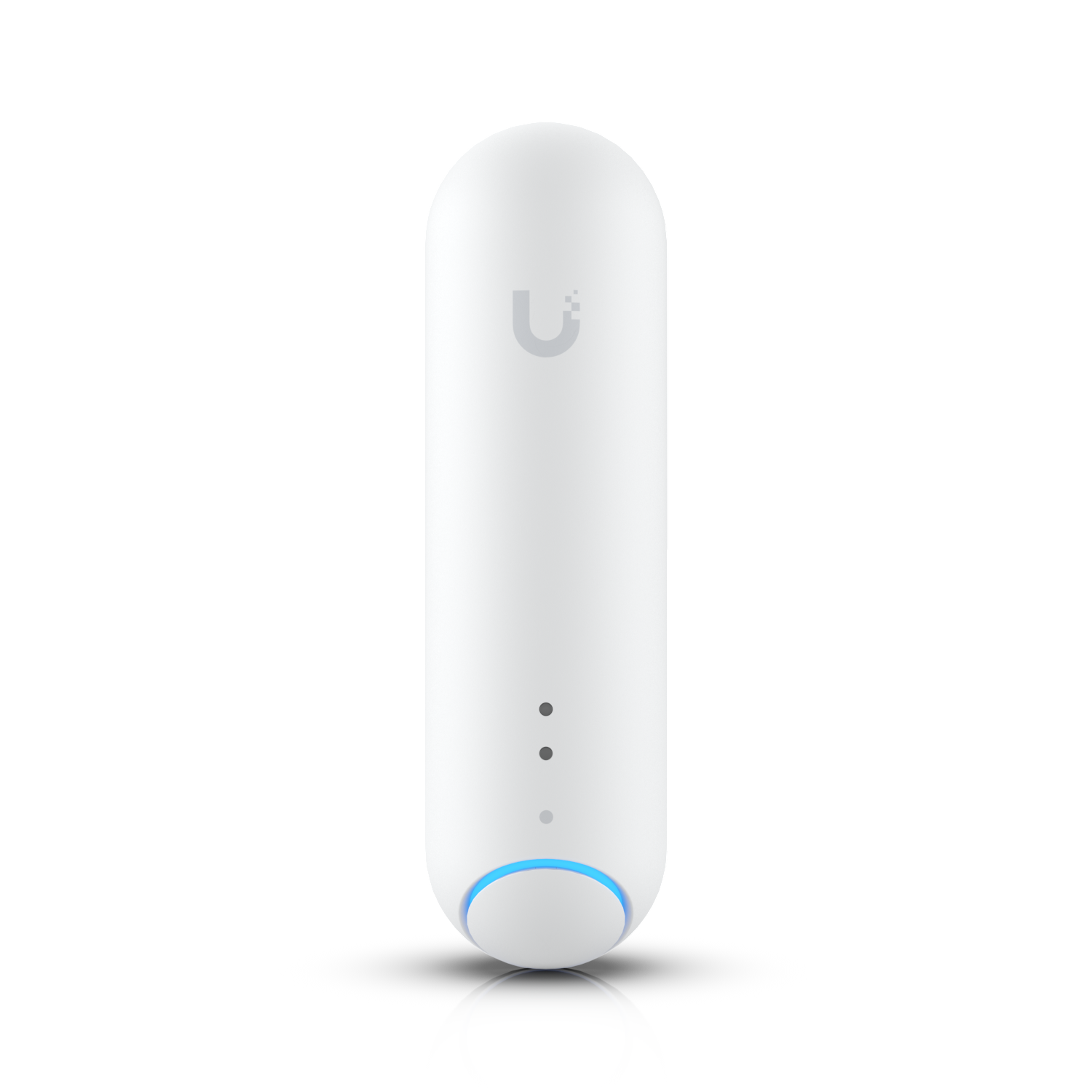

Ubiquiti UniFi Protect Smart Sensor, Single Pack, Battery-operated Smart Multi-sensor, Detects Motion and Environmental Conditions

Quantity:

$108

  ex GST

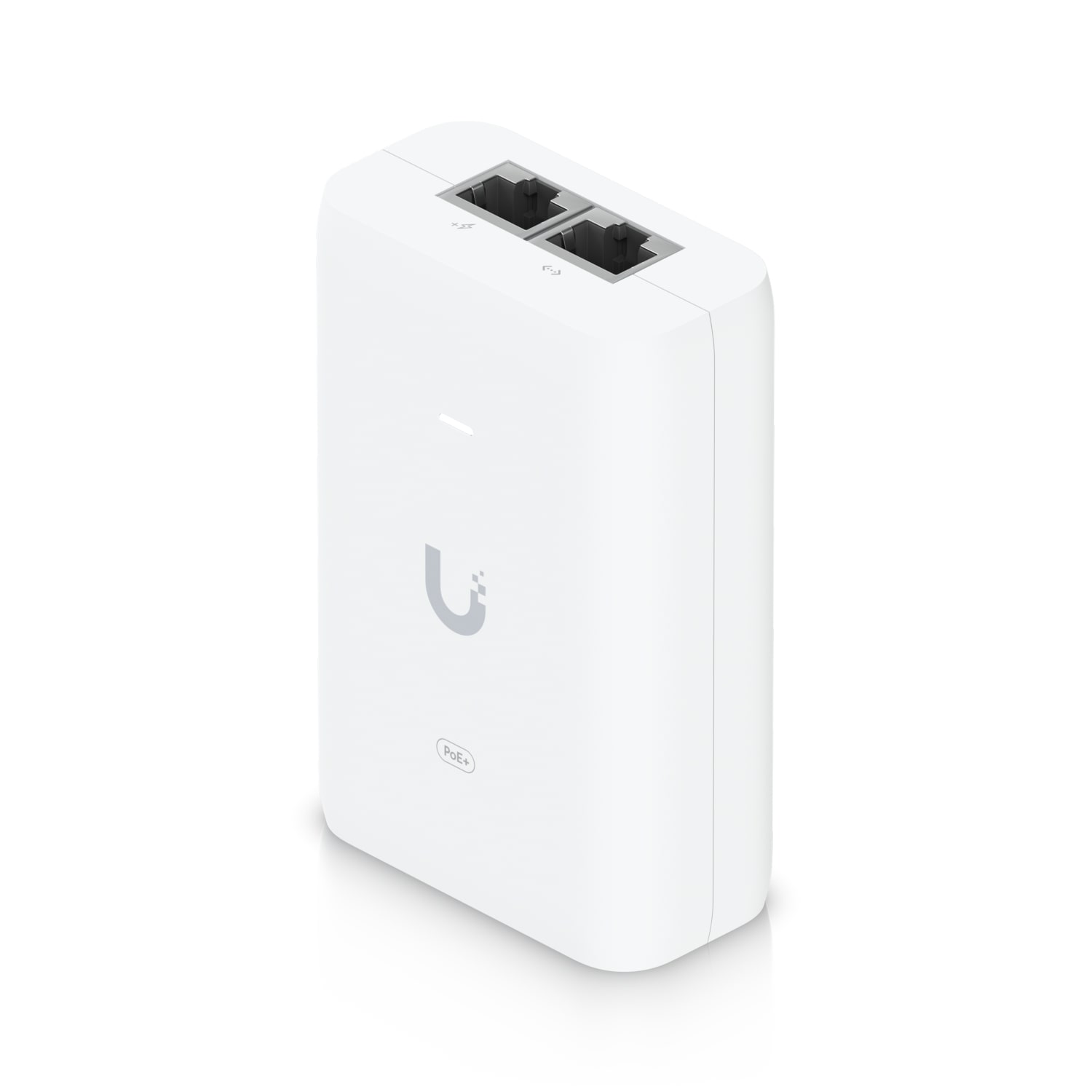

Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable, U6 AP Suitable (U6-LR, U6-LITE, U6-PRO&U7-PRO),Replacement for POE-48-24W-G

Quantity:

$33

  ex GST

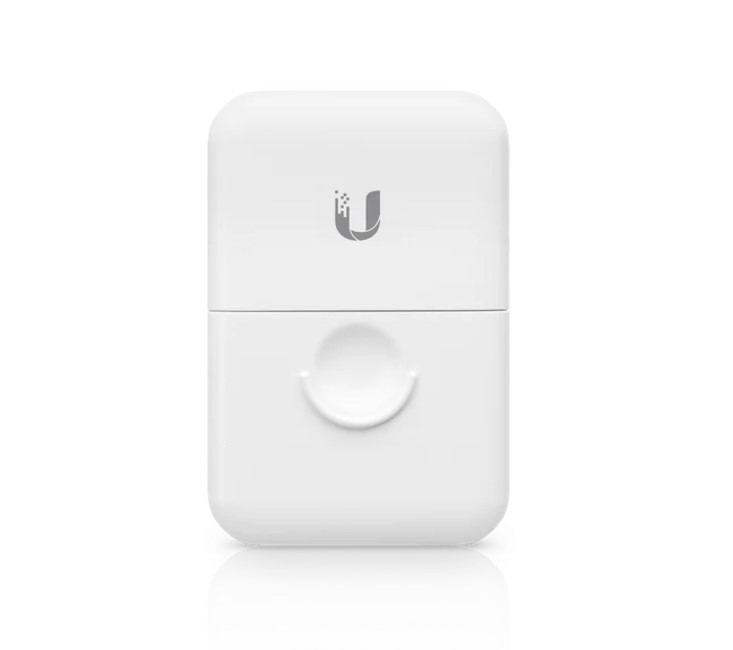

Ubiquiti Ethernet Surge Protector, Engineered Protect Any Power‑over‑Ethernet (PoE) /Nnon‑PoE Device, Connection Speeds Up to 1 Gbps

Quantity:

$25

  ex GST

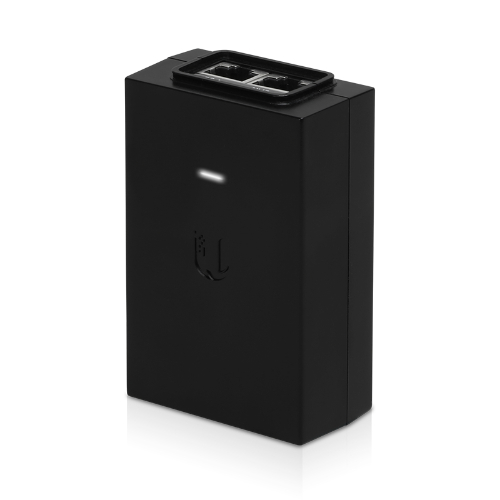

Ubiquiti POE Injector, 48V DC 24W Gigabit Lan, Black, Surge and Clamping Protection, Superceded by NHU-U-POE-AT
