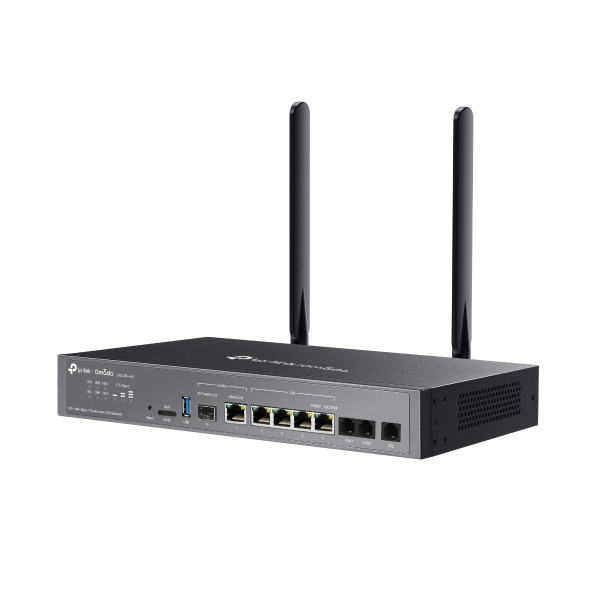

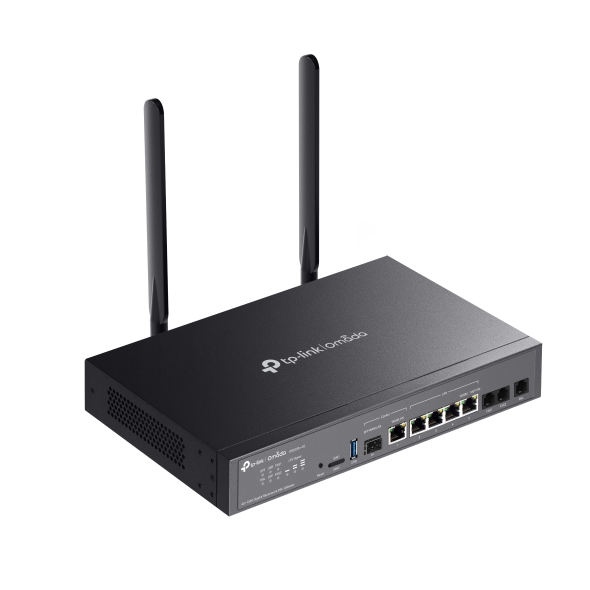

TP-LINK OMADA 4G+ CAT6 GIGABIT RACKMOUNT DSL GATEWAY, DSL/FXS(3), GBE WAN(1)/LAN(4), 5YR
| SECURITY | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering** • URL Filtering • Web Security** |
| ARP Inspection | • Sending GARP Packets • ARP Scanning** • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|

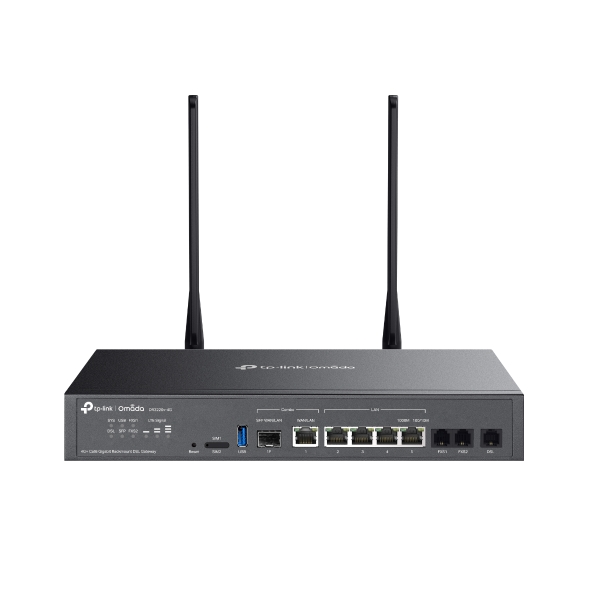

| Interface | • 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port) • 4 × RJ45 Gigabit LAN Ports • 1 DSL Port • 2 FXS Ports |
| Button | Reset Button |

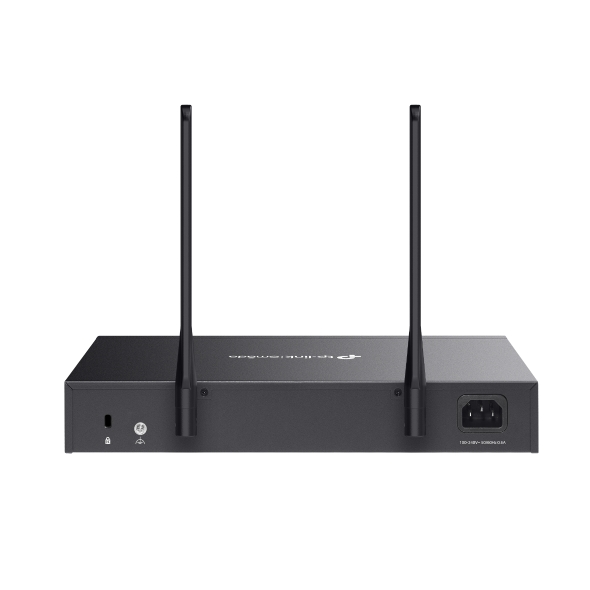

| Power Supply | 100-240V/50-60Hz 0.6A |
| Slot | 1*USB 3.0 (supports USB LTE dongle and USB Storage) |
| Flash | 256MB NAND |
| DRAM | 512MB DDR4 |
| Dimensions ( W x D x H ) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions not included) |
| Antenna | LTE: Two 3dBi omnidirectional detachable antennas |
| SIM Slot | 1 Dual-SIM Nano SIM slot (4G+ Cat6) |
| Mounting | Desktop/ Rack-mounting |
| Max. Power Consumption | • 8.55 W (No Link) • 24.4 W (Full load + USB ) |
| PERFORMANCE | |
|---|---|
| GRE | • Unencrypted: 491.9Mbps • Encrypted: 244.3Mbps |
| WireGuard VPN | 290Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 4,050 |
| NAT (Static IP) | 937.2 Mbps/936.1Mbps |
| NAT(DHCP) | 945.8 Mbps /940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps/942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 526.6Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 561.7Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | 837.4 Mbps /881.5Mbps |
| PPTP VPN Throughput | 803.0 Mbps/910.5 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps/ 91275 pps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering** • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)§ • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)§ • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)§ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | ✔ |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize1 • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR-181 are supported) |
| Zero-Touch Provisioning | Yes. Require the use of Omada Controller. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |

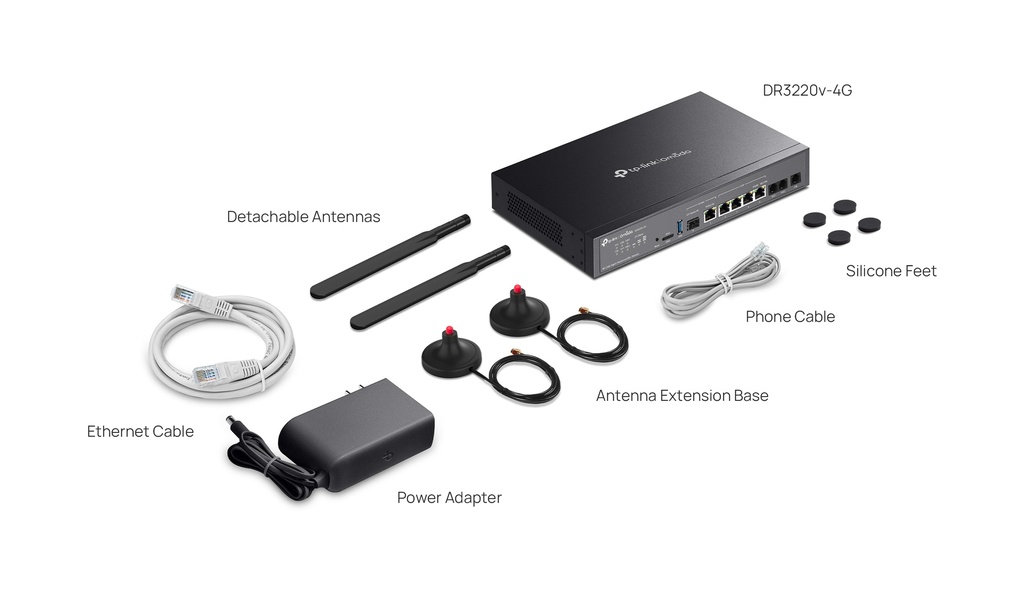

| Package Content | • DR3220v-4G • Power Cord • Ethernet Cable • Phone Cable • Rubber Feet • SIM Card Eject Pin • Rackmount Kit • Antenna Extension Base • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
