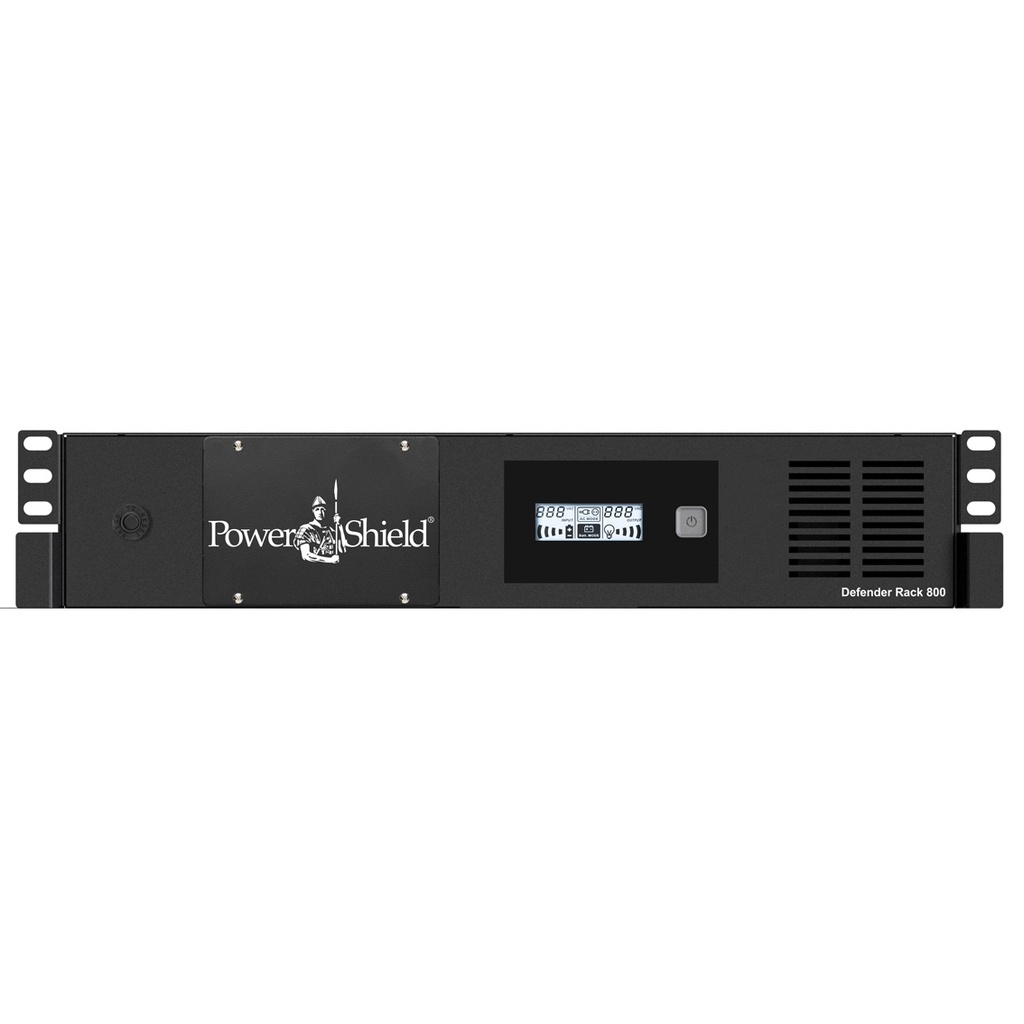

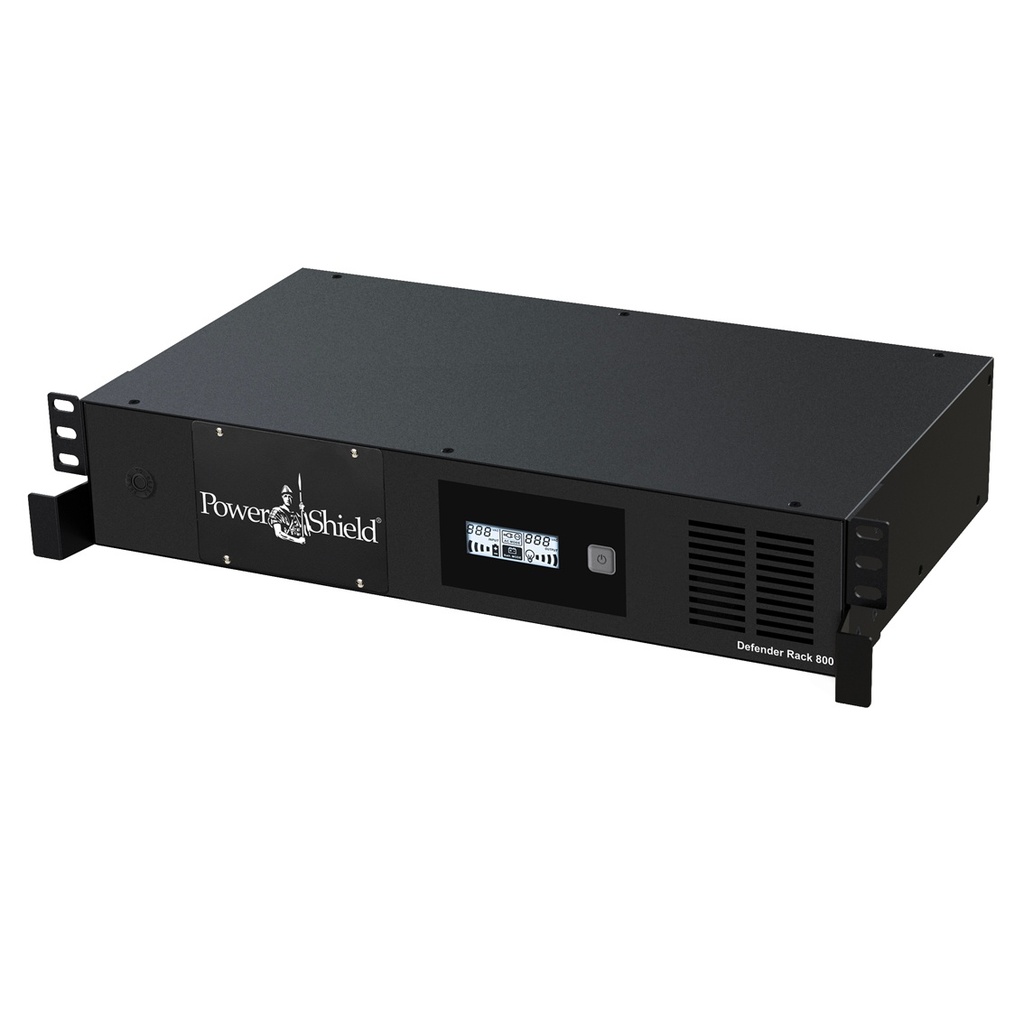

POWERSHIELD DEFENDER RACKMOUNT UPS 800VA, 480W, LCD, AVR, USB, AU OUTLET(8), 2YR
RACK UPS. The Defender Rackmount expands the successful Defender Range by building the popular features into a Rack Mount NAS UPS perfect for shallow, wall mounted Comms cabinets. This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
| Capacity | 800VA / 480W |
| Topology | Line Interactive |
| Voltage | 240VAC (Nominal) |
| Voltage Range | 177 to 290VAC |
| Frequency Range | 50Hz or 60Hz (Auto sensing) |
| Output Voltage | 240VAC ± 10% |
| Frequency Range (Batt Mode) | 50Hz or 60Hz ±1Hz |
| Transfer Time | 6ms (Typical) |
| Waveform (Batt Mode) | Simulated Sine Wave |

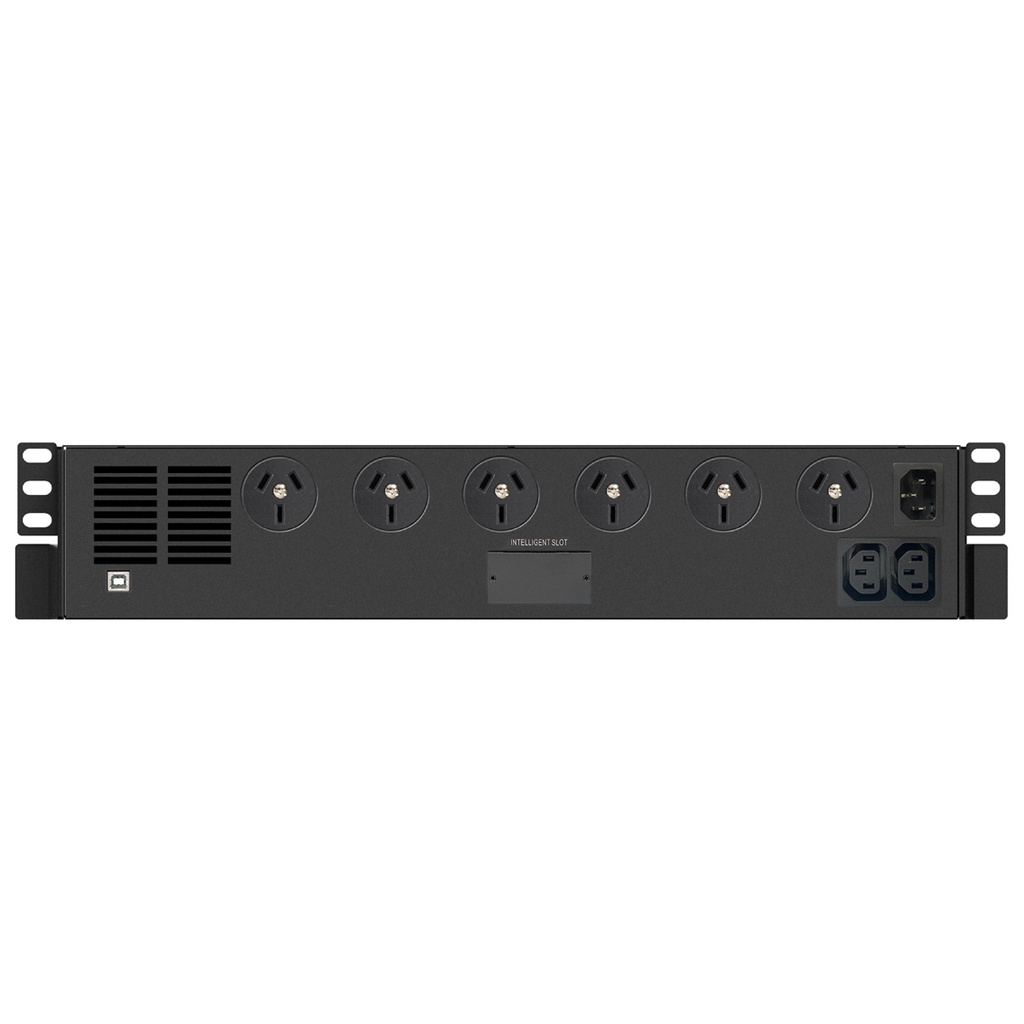

| Australian Outlets – UPS and Surge Protection | 2x 10 Amp IEC Sockets, 6 x Australian Sockets |
| Battery Type | 12V / 9Ah (x1) |
| Backup Time | 6 mins |
| Typical Recharge Time | 6 hours recover to 90% capacity |
| Full Protection | Overload, discharge and overcharge protection |
| Surge Protection | 312Joules / 6500Amps |
| Interface | USB as standard, Intelligent slot for PSSNMP |
| Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
| LCD Alarm | AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
| Audible Alarm | Battery Mode, Low Battery (Batt. Mode), Fault, overload |
| Dimension D x W x H (mm) | 230 x 438 x 86 |
| Net Weight (kgs) | 7.7 |
| Temperature | 0–40°C |
| Humidity | 0–90% RH (non-condensing) |
| Noise Level | <40dB (no fan) |
| Safety/EMC | EN62040 - 1 - 2008, IEC60950 - 1: 2001, EN62040 - 2 2006 |
| Warranty | 2 Years |
